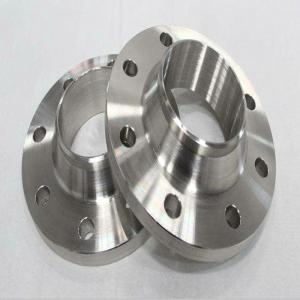

Carbon Steel A105 Pipe Connector 150LBS Forged Plated Flanges
Product Description:
Specifications:
SORF Flanges Size : 1/8" NB TO 48"NB.
SORF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Stainless Steel WNRF Flanges: ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L,
Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181
Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal
SORF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Value Added Services
Hot Dip Galvanizing , Epoxy Coating.
Test Certificate
Manufacturer Test Certificate as per EN 10204 / 3.1B
| Material Grade | WP304 , WP304L , WP304H , WP316 , WP316L , WP316Ti , WP309S , WP310S , WP321 , WP321H , WP347 , WP347H , F304 , F304L , F304H , F316 , F316L , F310S , F321 etc |
| Size | 1/2" to 48" Sch 5S to XXS |
| Standard | ASTM 381 ,ASME/ANSI B16.5,DIN2630~2633,BS etc |
| Main Market | Europe , Middle East , Southeast Asia , South America . Etc |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Thickness | SCH20, SCH30, SCH40, STD, SCH80, SCH100, SCH120, SCH160, XXS |
| Application | 1.Chemical industry 2. Petrochemical industry 3. Machining field,Automobile field,etc 4. Desalination of sea water 5. Textile printing and dyeing 6. Mobile phone component field |

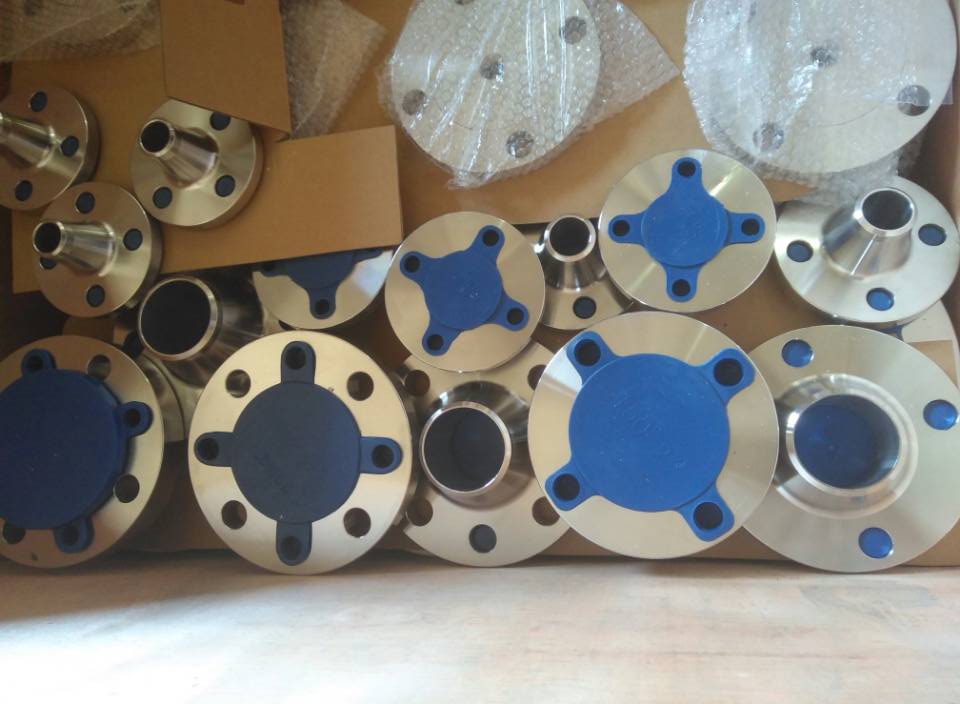

Detailed Images:
Packaging & Shipping:
| Packaging: | In wooded cases , pallets or according to clients' requirements |
| Shipping: | Tianjin port, Shanghai port and the other main ports in China |
Our service:
