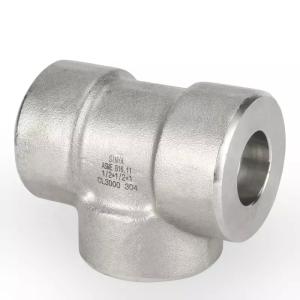

ASME B16.11 2000# 3000# 6000# 9000# Stainless Steel 304 / 304L 316 / 316L High Pressure Pipe Fittings Socket Weld Tee

Brand Name : TOBO/TPCO/TISCO/VALIN/METAL

Model Number : 1.4835 Stainless Steel Seamless Pipe

Certification : ISO/PED/TUV/SGS/LR/BV

Place of Origin : China/Japan/Germany

MOQ : 0.5-1 tons

Price : negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 7500 tons per year

Delivery Time : 15days->

Packaging Details : in plastic bags then in bundles

Standard : DIN, ANSI, ISO, GB, JIS

Application : Fluid pipe,Structure Pipe

Surface : Annealed & Pickled, Bright Annealing, Polished

Types : Seamless

Thickness : 0.5-100mm

Outer Diameter : 6-813mm

Material : Carbon Steel,Stainless Steel,alloy steel,Brass,copper

Sample : Provided,Free,Available free within 7days

Contact Now

ASME B16.11 2000# 3000# 6000# 9000# Stainless steel 304/304L,316/316L High Pressure Pipe Fittings Socket Weld Tee

Overview
Quick Details
Customized support:
OEM, ODM
Place of Origin:
China
Model Number:
SOCKET WELD FITTING
Technics:
Forged
Connection:
Welding
Shape:
Equal
Head Code:
Round
Size:
1/8" - 4"
Customization:
Available
OEM service:
Available
Certificate:
ISO 9001, CE
Rating Pressure Threaded End:
2000/3000/6000 LBS
Rating Pressure Socket Weld End:
2000/3000/9000 LBS
Rating Pressure Butt Weld End:
SCH40/SCH80/SCH160/XXS
Supply Ability
Supply Ability
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Plastic Bag,Carton box, Wooden case or according to your requirement.
Port
Shanghai
Picture Example:
Lead Time:
Quantity(pieces) 1 - 10 11 - 100 101 - 200 >200
Est. Time(days) 7 10 14 To be negotiated
Type
1.Elbow, Tee, Cross, Couping,Half Coupling, Cap,Plug,Bushing,Union, HEX.Nipple,Swage niipple,Bull Plug,Street Elbow, Boss,Reducer Insert and Out-let...etc.
2.Threaded(NPT or PT Type), Socket-Weld,Butt-welding
Size
NPS 1/8"~4" DN6~100
Rating Pressure
Threaded End-2000/3000/6000LBS
Socket-weld End-3000/6000/9000LBS
Butt-weld End-SCH40/SCH80/SCH160/XXS
Specifications
1.Dim.Spec.:
ASME B16.11-2009(Revision of ASME B16.11-2005)
MSS-SP-79,83,95,97 and BS3799
ANSI/ASME B1.20.1-1983 NPT
2.Material Spec.:
ASTM A 105,A350 LF2, A106,A312,A234,A403
ASTM A182(F304,F304L,F316,F316L,F304H,F316H,F317L,F321,F11,F22,F91)
3.Size of Raw Material:DIA.19~85mm Round Bar
Marking
1.Carbon and Alloy Steel:Marked by stamping.
2.Stainless Steel:Marked by electro-etched,jet printed or stamping
3.3/8"under:Brand only.
4.1/2"to4":Marked with brand,material,heat code, pressure and size.
Finishing
Carbon steel: Galvanized or black
Stainless steel:Pickled.
ASME B16.11 2000# 3000# 6000# 9000# Stainless Steel 304 / 304L 316 / 316L High Pressure Pipe Fittings Socket Weld Tee
ASME B16.11 2000# 3000# 6000# 9000# Stainless Steel 304 / 304L 316 / 316L High Pressure Pipe Fittings Socket Weld Tee

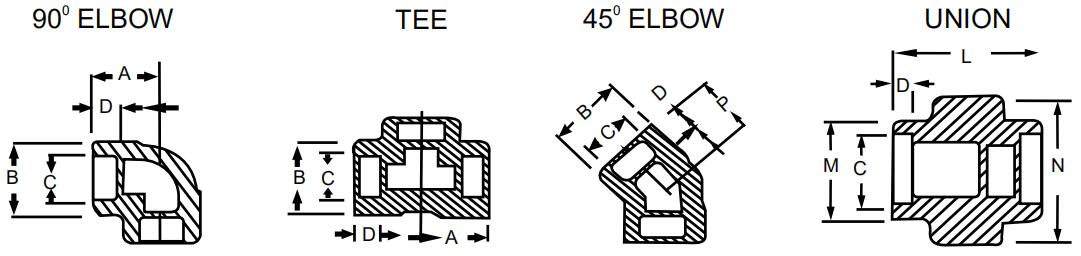

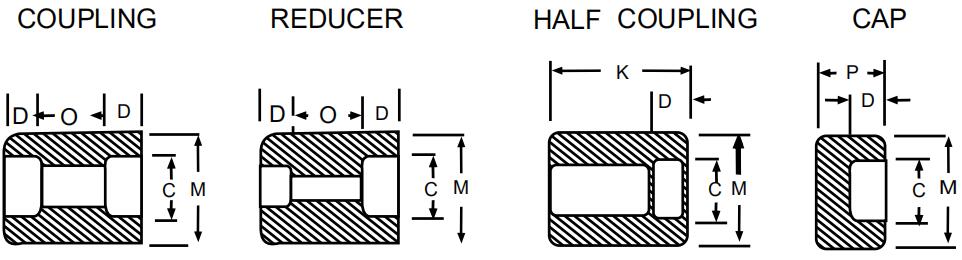

SOCKET WELD FITTING TO ANSI B-16.11
NOM
BORE
PIPE
O.D.
COMMON FACTORS
C
min.
D
min.
O
min.
O
max.
1/8"
10.3
10.7
10
5
8
1/4"
13.7
14.1
10
5
8
3/8"
17.2
17.6
10
3
9
1/2"
21.3
21.7
10
6
13
3/4"
26.7
27
13
6
13
1"
33.4
33.8
13
9
17
1 1/4"
42.2
42.6
13
9
17
1 1/2"
48.3
48.7
13
9
17
2"
60.3
61.2
16
15
23
2"
60.3
73.8
16
14
24
3"
89.00
89.8
16
14
24
4"
114.50
115.5
19
14
24
NOM
BORE
6000 LBS.
A
B
M
K
N
1/8"
22
22
20
25
46
1/4"
27
25
24
25
51
3/8"
27
28
28
26
60
1/2"
31
34
34
31
72
3/4"
37
42
41
35
80
1"
42
50
50
40
94
1 1/4"
47
59
58
41
100
1 1/2"
53
67
66
43
122
2"
59
84
83
55
2 1/2"
102
56
3"
121
58
4"
152
64
NOM
BORE
3000 LBS.
A
max.
B
max.
K
J
L
M
N
P
Q
1/8"
22
18.5
26
16
40
17.3
32
15
10
1/4"
22
22
26
18
43
21.2
32
15
10
3/8"
25
25
26
19
48
25.4
36
16.5
10
1/2"
27
32
30
21
51
31
41
16.5
10
3/4"
34
38
36
24
57
37
50
19.5
13
1"
37
46
40
25
64
45.2
60
22.5
13
1 1/4"
42
56
40
29
70
55
70
22.5
13
1 1/2"
47
62
40
30
79
61.4
78
24
13
2"
56
75
52
37
89
75
95
29
13
2 1/2"
60
92
52
48
114
91.3
125
32
16
3"
76
110
52
51
127
108.8
140
35
16
4"
88
137
58
150
136.9
42
19

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.
Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.
Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.
Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.
Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.
Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
