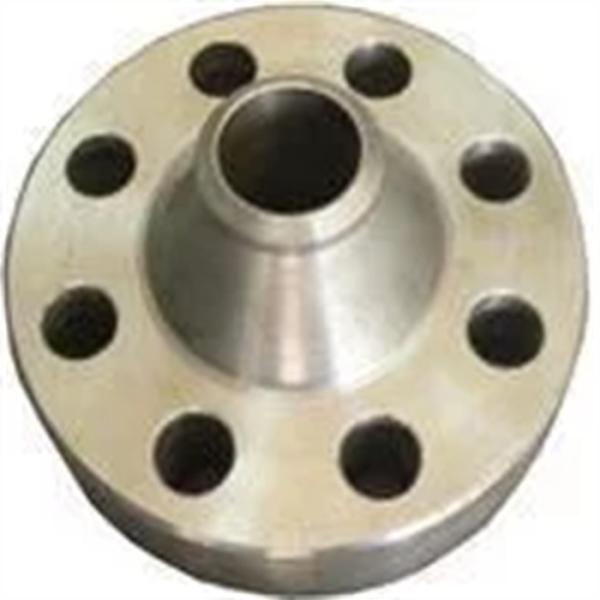

ASTM A105 Flange

ASTM A105 Flange is a type of flange that is covered by a standard that covers pressure pipe and fittings that can operate under ambient temperature to high temperature services. Dinesh Industries is a supplier and manufacturer of flanges of all types. And so we produce and supply the A105 flange range as well. There are different standards that cover the different ASTM A105 flange dimensions which can be used with similar sized pipes. The wall thickness, the diameter, the material grade and the pressure classes all determine which kind of SA 105 flange could be used in a certain application.

Biggest CS A105 Forged Flange Supplier, Refer Dimensions of Asme Sa105 Weld Neck Flanges

There are different weights to the different dimensions of flanges as well. You can contact us to get a ASTM A105 flanges weight chart to understand more about the flange weights and to choose from a host of flanges. As a flange a105 manufacturer we can also supply you with custom dimensions of flanges as well. We are manufacturer of A105 Forged Steel Flanges as per requirement of clients. Our prices are very competitive to the A105 flanges price list india and you can place bulk orders to reduce your cost. Since we manufacture, stock and supply, our ASTM A105 carbon steel flangesare sold at lower prices by eliminating the middlemen. We are leading supplier of ASTM A105n Flange.

Referenced documents

The following list of standard apply to these specification:

ASTM standards:

• A266/A266M Specification for carbon steel forgings for pressure vessel components.
• A675/A675M Specification for hot-rolled, special quality and mechanical properties, carbon steel bars.
• A696 Specification for steel bars, carbon, hot-rolled or cold-finished,special quality, for pressure piping components.
• A788/A788M Specification for steel forgings, general requirements.
• A961/961M general requirements for steel flange, forging fittings, valve and parts for piping applications.

MSS standard:

• SP44 Standard for steel pipe line flanges

ASME Standard:

• B16.5 Dimensional standard for steel pipe flanges and flanges fittings
• B16.9 Wrought steel butt-welding fittings
• B16.10 Face-to-face and end-to-end dimensions of ferrous valves
• B16.11 Forged steel fittings, socket weld and threaded
• B16.34 Valves connect by flanges, threaded and welding end
• B16.47 Large diameter steel flanges
• ASME boiler and pressure vessel code:

API standard:

• API-600 Flanged and butt-Welding-end steel gate valves
• API-602 Compact design carbon steel gate valves for refinery use

Karakteristik Mekanik Flange SA 105

PERALATAN MEKANIS	PERSYARATAN
Kekuatan luluh, min, psi [MPa]	36000 [250]
Kekuatan tarik, min, psi [MPa]	70000 [485]
Perpanjangan, min, %	30
Kekerasan, HB, maks	187
Pengurangan luas, min,%	30

Sifat Fisik Flensa Baja Karbon ASTM A105

Kepadatan (lb / cu. in.)	0.284
Panas Spesifik (Btu/lb/Deg F – [32-212 Deg F])	0.107
Titik Leleh (Deg F)	2740
Konduktivitas termal	360
Berat jenis	7.9
Rata-rata Ekspansi Termal Coeff	6.7
Modulus Elastisitas Torsi	11
Modulus Tegangan Elastisitas	30

Sifat Kimia Flange Baja Karbon ASTM A105

ELEMEN	KOMPOSISI, %
Fosfor	0,035 maks
Sulfur	0,040 maks
silikon	0.10-0.35
Karbon	0,35 maks
Mangan	0,60-1,05
Tembaga	0,40 maks (1)
molibdenum	0,12 maks (1-2)
Vanadium	0,08 maks
Nikel	0,40 maks (1)
kromium	0,30 maks (1-2)

Welding

These components can be welded. Welding procedures must comply with ASME Boiler and Pressure Vessel Code Section IX.

Forging

ASTM A105 carbon steel can be forged at temperatures in the range of 2200 to 1700 F followed by quenching and tempering or normalizing.

Annealing

Forged parts can be cooled to below 1000 degrees Fahrenheit and then heated to between 1550 degrees Fahrenheit and 1,700 degrees Fahrenheit. Then carry out slow furnace cooling.

Hydro-static Test

Hydro-static Test shall be conducted by the forging manufacture only when Supplemental S57 of ASTM A961 is specified.

Terminology

For definitions of other terms used in this specification, find in specification A961/A961M.

Ordering information

See specification A961/A961M.

General requirements

If conflict between the requirements of this specification and Specification A961/A961M. Comply with this specification.

Chemical Composition

A The sum of copper, nickel, chromium, molybdenum and vanadium shall not exceed 1.00%.
B The sum of chromium and molybdenum shall not exceed 0.32%.

Heat treatment

Heat treatment is not required except for flanges above Class 300, flanges of special design where the design pressure or design temperature are not known and for items over 4" NPS and above Class 300. When heat treatment is required, annealing, normalizing, Normalize and temper, normalize and quench and tempering shall be the applied methods.
