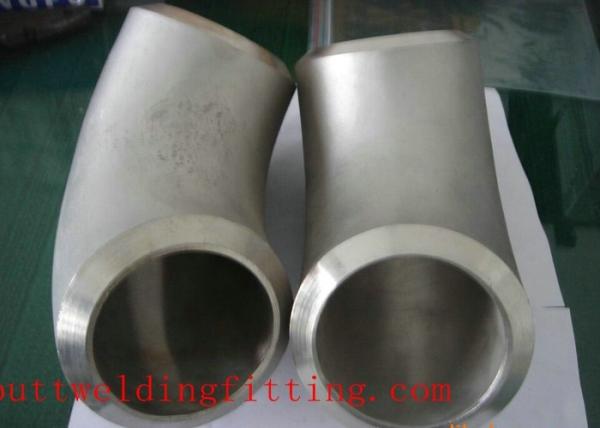

ASME / ANSI Stainless Steel Pipe Elbows TZ01 Buttweld Fittings
| 1.Type | ASME/ANSI B16.9 304 /316 stainless steel pipe fittings stainless steel elbow |
| 2.Size | Seamless 1/2" To 24" Welded To 72" |
| 3.Wall thickness | Sch5S-Sch160, sch40,sch40s,XS,XXS |
| 4.Standards | ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc |
| 5.Material | Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 Low Temperature: ASTM A420 WPL 1, WPL 3, WPL 6 |
| 6.Surface treatment | Sand Rolling, Sand Blasting ,Acid Cleaning. |
| 7.Applications | Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc |
| 8.Certificate | API, CCS,and ISO9001:2000 for 304 316 stainless steel elbow |
1. Product Item No.: 002fittings-Cosco Steel
2. Product name: 2205 Stainless Steel 90D LR Elbow
3. Material: stainless steel,alloy steel,carbon steel
4. Size:
Seamless(SMLS) Elbows : 1/2"-2 4" ,DN15-DN600
Butt Welded Elbows (seam) :24"-72",DN600-DN1800
5. Thickness:SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
6. Type:

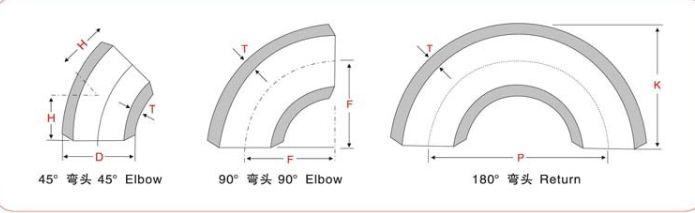

SR 30,45,60,90,180 degree
1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
7. Pressure: Sch5--Sch160,XXS
8. Standard: ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2
9. CE and Certification: ISO9001:2000, API, BV, SGS, LOIYD
10. Application Range: "Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power etc."
11. The third party inspection: BV, SGS, LOIYD, TUV, and other party alloyed by clients.
12. Remark: Also can supply IBR fittings and Specialized NACE & HIC Fittings.
13. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
14. Packing: Wooden box or wooden pallet.
15. H.S Code: 73072300
16. Material:
| Material | ASTM | Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
| Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.) |
| Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,
A420WPL6,A420WPL3 |
| DIN | Carbon steel:St37.0,St35.8,St45.8 |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 |
| Alloy steel:1.7335,1.7380,1.0488(1.0566) |
| JIS | Carbon steel:PG370,PT410 |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 |
| Alloy steel:PA22,PA23,PA24,PA25,PL380 |
| GB | 10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,
12CrMo, 12CrMoG, 12Cr1Mo |
Product Tags:
|
|

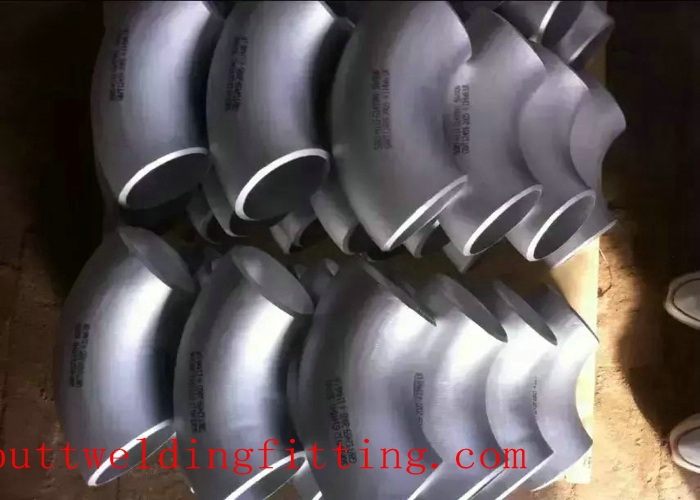

ASME / ANSI Stainless Steel Pipe Elbows TZ01 Buttweld Fittings Images
|
