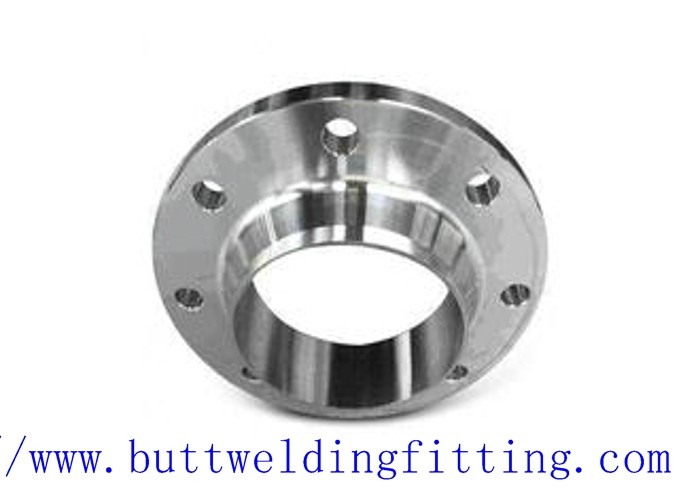

TOBO Weld Neck Flanges ASTM A182 F9 ANSI B 16.5 A105 Cabon Steel
| Weld Neck Flanges
Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.
We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.
|
| |
Product Range:
WNRF Flanges Size : 1/8" NB TO 48"NB.
WNRF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Stainless Steel WNRF Flanges: ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181
Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal
WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Value Added Services
- Hot Dip Galvanizing ,
- Epoxy Coating.
1.material:carbon steel,stainless steel
2.types:slip on,welding nect,blind,threaded
3.standard:ANSI, DIN, EN1092-1,
steel flange
| Specification | |
| Product | Flange |
| Size | 1/2"-72" |
| Type | Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint,Spectacle Blind,Etc |
| Standard | ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB |
| Class | ANSI 150LBS-2500LBS, |
| DIN PN6-PN160 |
| BS PN0.25-PN25 PN2.0-PN42.0 |
| JIS 5K-30K |
| Materials | Carbon Steel |
| Low Temperature Carbon Steel: ASTM SA350 LF2 |
| High Strength Steel: ASTM SA694 F42/46/52/56/60/65 |
| Stainless Steel | ASTM A182 F304/304L/316/316L |
| Alloy Steel | ASTM A182 F1/F5/F9/F11/F22/F91/Etc. |
| Duplex stainless steel | ASTM A182 F51/F53/F55/F60 |
| Nicke alloys | Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800 |
| Cu-Ni | 90/10,70/30 |
| Process | Free forging, plate cutting. |
| Printing | Carbon steel and alloy steel with yellow print, black print, oil or zinc. |
| Packing | Plywood case |
| Delivery | Usually within one month after receiving the formal order . |
| Inspection | Factory in-house or Third Party inspection available upon requests. |
